WHITE FUEL LEVEL GAUGE E-1/2-F
White fuel level indicator empty - 1/2 - full.
Drilling diameter 52mm.
240 - 33 Ohms.
Compatibilité inconnue ou non renseignée, Contact us
Voir les produits compatibles
Produit compatible

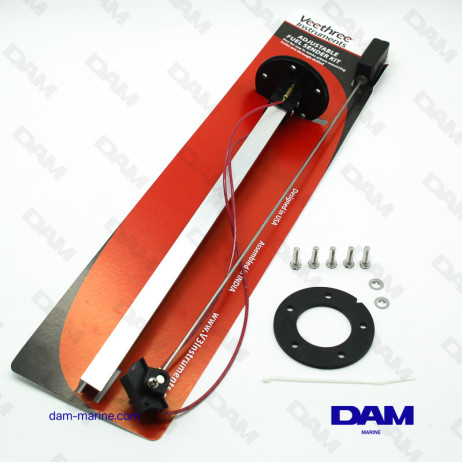

Fuel level indicator with adjustable lever for tanks from 10 to 60cm deep.
Resistance 240-33 ohms for instrumentation types: Teleflex, Mercury, Faria... excluding VDO .
Stainless steel metal parts.
Ceramic friction resistance, platinum contacts (up to four million movements guaranteed.
Patented movable rod delay system which cancels the pitch/roll effect.
5 fixing holes, center distance 60mm, external diameter 70mm.
